Radiant Heater Parts Quality Aftermarket Replacement Parts Since 1983

–––

We've been manufacturing the highest quality replacement parts for Roberts Gordon radiant heaters since 1983. Customer care is important to us! We want to work with you to make sure you're ordering the exact parts you need.

Please call (810) 724-2700 or email us at sales@radiantparts.com

HOURS
MON - FRI, 12:00 PM - 5:00 PM

Replacement Air Filter Cartridge fits CoRayVac

Parity Plus #1020-8331

Functionally Replaces: $14.69 Replaces Roberts Gordon P/N's 01312400, 01312401, 90707000, 90707700, 907-070 or 52355 and Parity Plus # 83316, FLUITEK - 1812, Filpro - FP10-401, RF-17940

Category: Filters

Description: $14.69 ea. Air Intake Replacement Filter for CRV-A", CRV-B and CRV-E burners. Metal end caps, fire retardant media paper, metal outer screen. 96 pleats means longer service life. Order 1030-8331 Filter Gaskets separately. Packed 24 or 1/2 case quantities.

Learn More

Filter Gasket Set

Parity Plus #1030-8331

Functionally Replaces: Roberts Gordon P/N's 01361300, 01361301, 01361302, 13-613, 13-614, 52356, or 52357

Category: Gaskets

Description: #1020-8331 Filter Gasket Set fits filter $1.19 ea. Adhesive backed, closed cell foam, 1/2 inch thick foam. Packed 24 sets to a carton or in whatever amounts you require. We work with you. Shipping wt. 1 lb.

Learn More

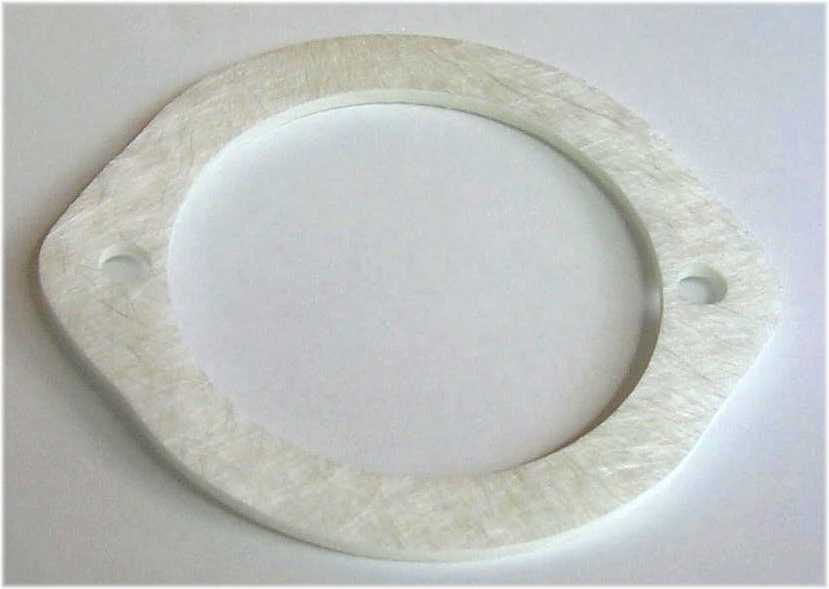

Combustion Chamber Gasket for CoRayVac 4-40 burners

Parity Plus #1030-4400

Functionally Replaces: Roberts Gordon P/N's 3-564, 013564 and 01356400

Category: Gaskets

Description: 4-40 Combustion Chamber Gasket durable enough to bounce around in a service truck without losing its shape or functionality till fired. Withstands temperatures up to 1250 degrees F. For use on 4-40 series CRVac burners only. Packaged 12 to a box. Shipping Weight 1 lb.

Learn More

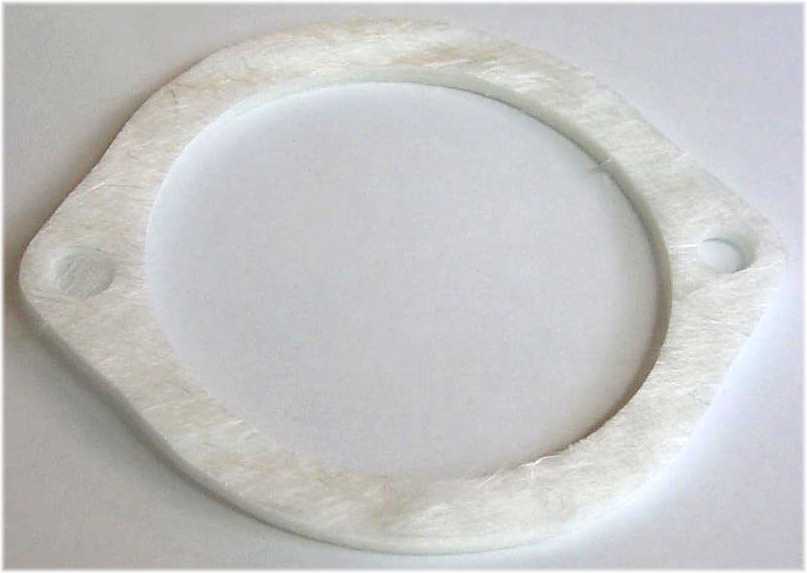

Combustion Chamber Gasket for CoRayVac A/B burners

Parity Plus #1030-0012

Functionally Replaces: Roberts Gordon P/N's 01367800 and 01367900

Category: Gaskets

Description: A-B Combustion Chamber Gasket durable enough to bounce around in a service truck without losing its shape or functionality till fired. Withstands temperatures up to 1250 degrees F. For use on CRV-A, CRV-B, 6-60 and 5-40 series burners. Packaged 12 to a box. Shipping Weight 1 lb.

Learn More

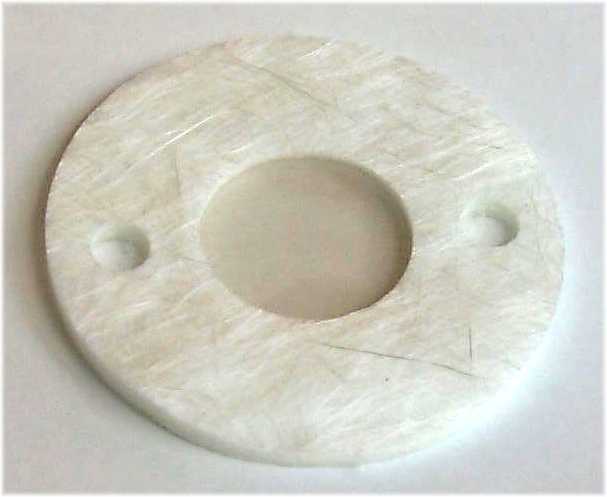

Mica Window Replacement

Parity Plus #1031-3700

Functionally Replaces: Roberts Gordon P/N's 02713700, 02713701, 02553200, 01351200 or 13-513

Category: Observation Windows

Description: Mica Window Replacement used on CoRayVac A, B, E, 4-40 5-40. Mica window is molded into the gasket. Service personnel no longer will have to assemble while in the air. Packed 12 to a carton. or separately. Shipping Weight 1/2 lb.

Learn More

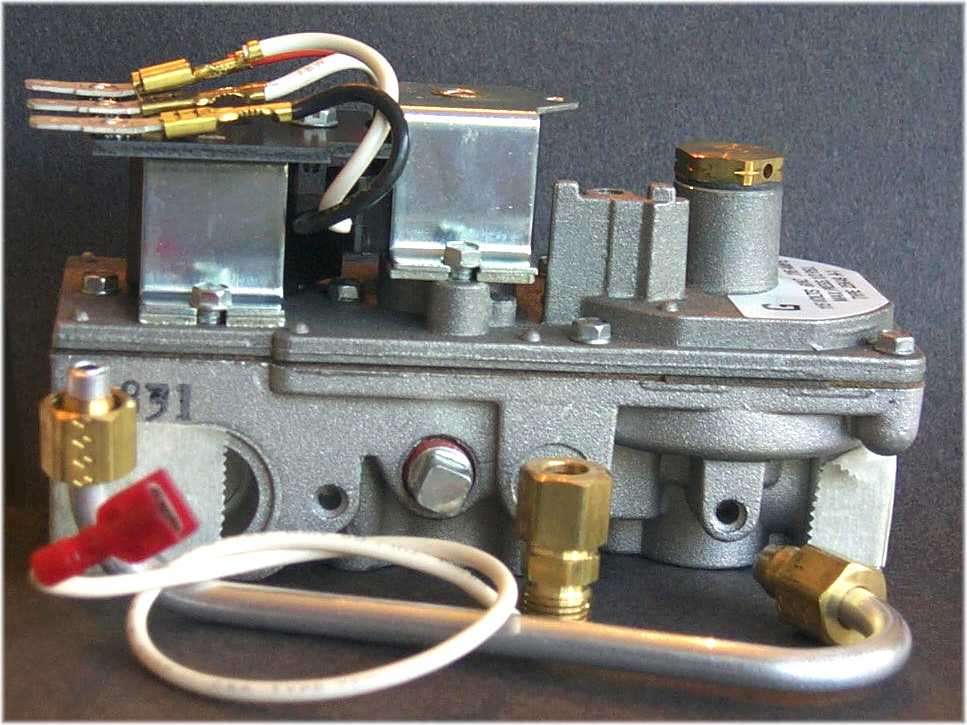

"A" Valve Replacement Kit

Parity Plus #1040-0022

Functionally Replaces: 01336000, 70100600, 900-268 or Eaton NC1-1181-1 or White Rodgers 25K49A-1

Category: Gas Valves

Description: Replacement kit for CRVac "A" Valve. Easily replaces obsolete NG or LP Eaton valve in all series CRVA, 4-40, 5-40, 6-60 burners. When used in a CRVac burner it replaces 25K49A-1 or Eaton. Instructions included. Not as shown. Shipping wt 3 lb.

Learn More

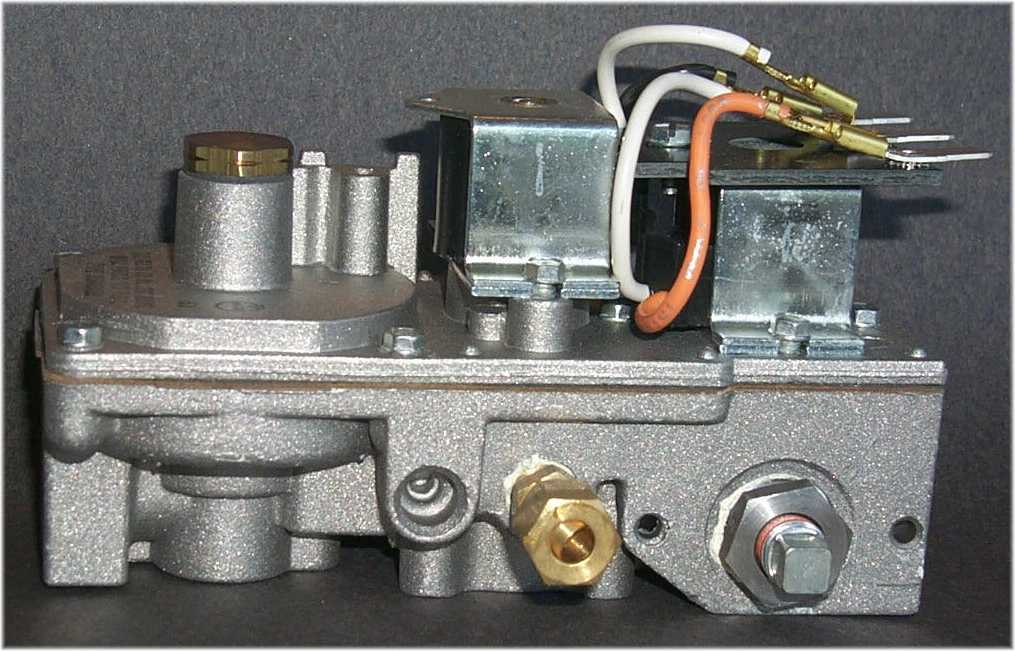

Replacement Valve NG fit Gordon Ray RTH-75A 75

Parity Plus #1040-6222

Functionally Replaces: Roberts Gordon P/N's 70100502, 70100500 or NC-1-1181-1F, 25K49A-62

Category: Gas Valves

Description: $313.65 CSA Marked Replacement Valve NG only. Easily replaces obsolete Eaton or 25K49A-62 valves in Gordon Ray RTH75 or 75A. NG ONLY. Instructions included. Not as shown. Shipping wt 3 lbs

Learn More

RobertShaw valve for CRV-B, E before August 1992

Parity Plus #1040-3200

Functionally Replaces: 7000BDE-S7B 90032000 3E0-500-872

Category: Gas Valves

Description: SALE $239.43 Robertshaw #7000BDE-S7B 1/2" x 1/2". Used on CRVB & CRVE burners manufactured before 8-1992

Learn More

Ignition Cable Replacement

Parity Plus #1051-ACRV

Functionally Replaces: 01320700, 91309116

Category: Ignition Controls

Description: High voltage Ignition Cable Replacement. Complete with Terminals and sealing grommet. Silicone insulation resists cracking.

Learn More

Spark Igniter, Pilot Relite fits CoRayVac "A" and RTH75A

Parity Plus #1050-A600

Functionally Replaces: Roberts Gordon, CoRayVac P/N's90425600, 01316600, 01320600, 38285, 904-171 OR 904-174, 5059A-600, 5058A-7 and 5059A-500, 01316601K

Category: Ignition Controls

Description: Spark Igniter, Pilot Relite kit. 4-40 6-60, CRVA & RTH75A series infrared heaters. 120 volt. Uses same mounting holes. Individually packed.

Learn More

Ignition Control Fenwal for CoRayVac early CRV-B units.

Parity Plus #1050-6257

Functionally Replaces: Roberts Gordon P/N's 02713501, 90434000 and 90423300 Triton 2460D 934-227?, 90427302

Category: Ignition Controls

Description: ONLY $151.64 Direct Spark Ignition Control Fenwal used on older CRV "B" & "E" before June 1999. 3 tries-for-ignition, 30 second prepurge, remote sensing, edge connector for plug-in wire connection. Fenwal # 35-605606-227 replaces obsolete Triton #2460D 606-227 & 934-227, 05-162426-007, 05-296466-257 & 05-296426-757 & 05-162426-207. Packed individually. Shipping wt 1 lb.

Learn More

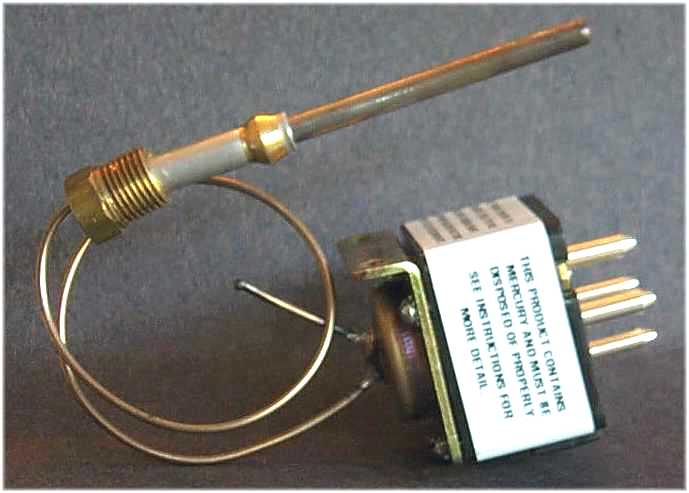

Automatic Pilot Switch, Thermocouple LONG

Parity Plus #1052-105L

Functionally Replaces: 90300200, 01313701, 13-137, 25-108, 02510800, 29825 or 903-002-105, based on the White Rodgers 30A46-105

Category: Flame sensor / Thermocouples

Description: $175.19 Automatic Pilot Switch, Thermocouple or Pilot Switch Assembly. The main function of this device is to sense a pilot flame and turn on the main burner valve. Pilot switch is an exact replacement with a 2-1/8" probe length, measured from ferrule to end of probe. This longer probe length is used in the RTH 75-A and all "A" series burners. When you see a pilot flame but do not feel any output, replace part. Packed 1 to a carton.

Learn More

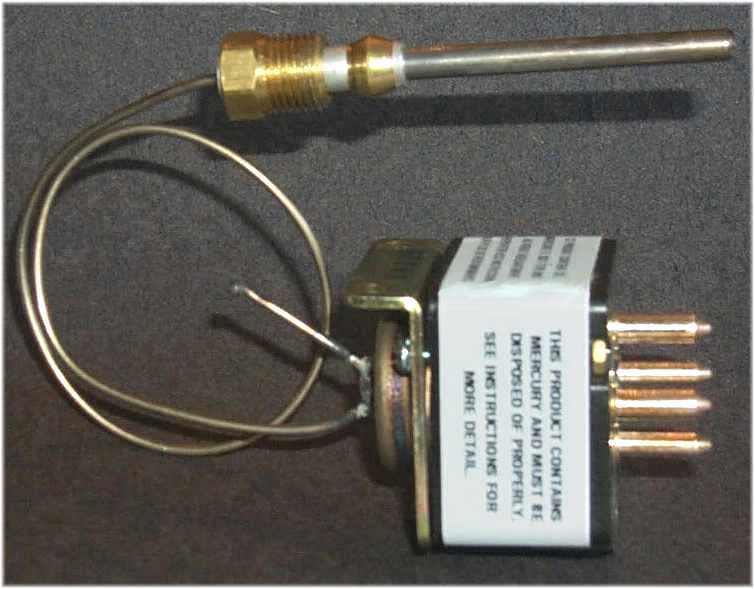

Automatic Pilot Switch, Thermocouple SHORT

Parity Plus #1052-105S

Functionally Replaces: 903-002-52, 903-042 or 01310902 based on the White Rodgers 30A46-105

Category: Flame sensor / Thermocouples

Description: Automatic Pilot Switch, Thermocouple or Pilot Switch Assembly. The main function of this device is to sense a pilot flame and turn on the main burner valve. Pilot switch is an exact replacement with a 1-7/8" probe length, measured from ferrule to end of probe. This shorter length is used in the CRV 4-40 40,000 btu/hr. burners. If you do not see the length you require, give us a call. We'll have it in no time!. Packed 1 to a carton.

Learn More

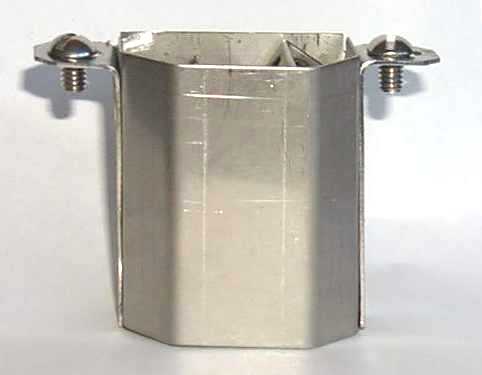

Pilot Shield Assm. Replacement

Parity Plus #1053-0100

Functionally Replaces: 01330000 OR 01324700

Category: Flame sensor / Thermocouples

Description: $47.60 Pilot Shield ASSM Replacement very special high temperature alloy. Mounting holes are oval to make installation and alignment easy. 2 slotted head screws included. .12 lb. shipping weight. Individually boxed.

Learn More

Pilot Sensor Socket

Parity Plus #1052-1504

Functionally Replaces: 58954, 113-230, 13-267, 25-215, 01326700 77-MIP-4

Category: Flame sensor / Thermocouples

Description: Order direct from 4STAR Electronics 949-276-5207 4starelectronics.com Part # 77MIP4. Or from CDM Electronics @ 856-740-1200

Learn More

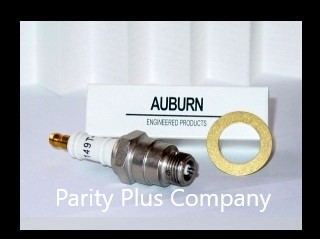

Spark Plug Electrode

Parity Plus #1051-149T

Functionally Replaces: 01320200, 91309000 and Auburn 149T-1

Category: Ignition Electrode Plugs

Description: $59.84 Auburn Spark Plug Electrode. This electrode plug is made using quality materials for use in 110v CRVac Series Vented Tubular Infrared System burners. Includes brass sealing washer.

Learn More

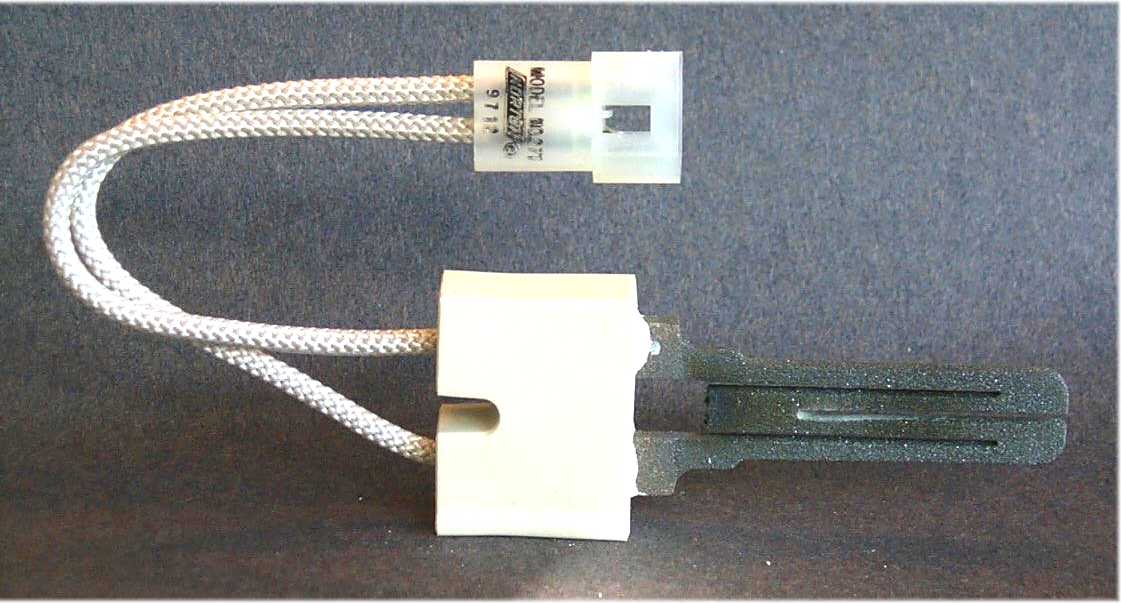

Hot Surface Igniter with Plug

Parity Plus #1055-271N

Functionally Replaces: 90436600 Norton 41-402

Category: Ignition Elements

Description: Hot Surface Igniter with Plug. Exact replacement except this replacement part is nestled in Styrofoam and protected in its own cardboard carton. Shipping Weight 1/2 lb.

Learn More

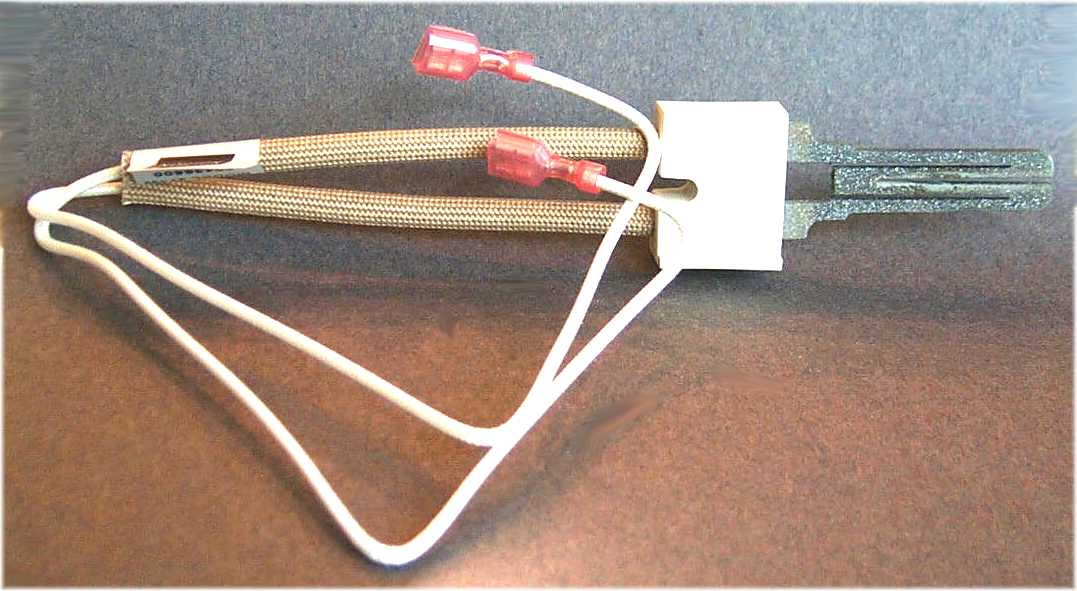

Hot Surface Ignitor 16"

Parity Plus #1055-271W

Functionally Replaces: 90436600

Category: Ignition Elements

Description: Hot Surface Ignitor 16" Long Leads. Exact replacement except this replacement part is nestled in Styrofoam and protected in its own cardboard carton, no worry about it breaking in a service truck. Shipping Weight 1/2 lb.

Learn More

Hot Surface Ignitor 16" w/ 4 place plug & sensor Wire

Parity Plus #1055-271WG

Functionally Replaces: 90436603K

Category: Ignition Elements

Description: Hot Surface Ignitor 16" Long Leads plus 19-1/2" long grey wire. Used with Honeywell SmartValve. Exact replacement, nestled in foam cushion and protected in its own cardboard carton. Shipping Weight 1/2 lb.

Learn More

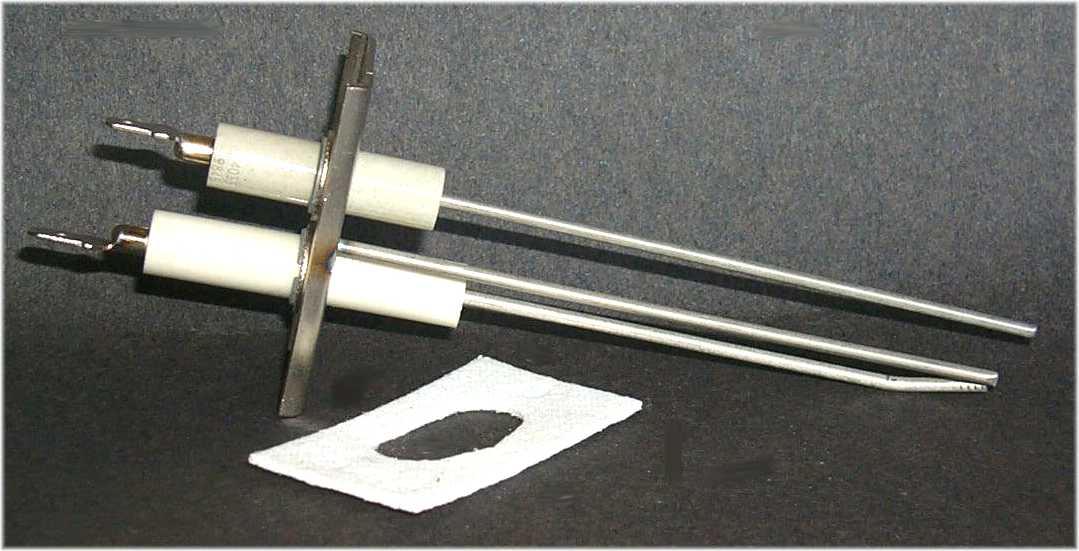

Flamerod / Electrode Assembly CRVB style

Parity Plus #1059-0320

Functionally Replaces: pse-rg1, 90430700 or 02713200

Category: Electrode / Flame Rod

Description: $44.00 Electrode Assembly used in "B" & "E" style CRV infrared burners. Included is a high temperature gasket. High temperature wire used to manufacture the electrode, ground and flame rods. Includes screws that fit all models. Individually packed.

Learn More

Electrode Flamerod Assm.

Parity Plus #1059-BH20

Functionally Replaces: pse-rg2 or 90427400

Category: Electrode / Flame Rod

Description: $39.40 Electrode Assm., Fits CTH, CTH1, EV, NP, BH, 150A, 150B, DF, R8, R10, ER

Learn More

Pump Overrun Relay / Circuit Timer Relay 24V

Parity Plus #1061-0024

Functionally Replaces: 90425200 Camstat #S106-2B61-55C

Category: TDR Time Delay Relays

Description: Pump Overrun Relay and or Circuit timer Relay 24v was used for a while but not as popular as the 120V model. Used in Control panel. Extra Heavy-duty contacts. Terminal labeling is the same, when used as Overrun relay the post purge time is 45-75 seconds. 24V heater. An excellent choice for replacement purposes. Packed 1 per carton.

Learn More

Pump Overrun Relay / Circuit Timer Relay 120V

Parity Plus #1061-1200

Functionally Replaces: 01335501 060-120v 12S30 318100

Category: TDR Time Delay Relays

Description: Pump Overrun Relay and or Circuit Timer Relay. 120V heater. Replaces, Klixon ETA, CamStat and Term-o-disc. Terminal labeling is the same. 120V heater. Packed 1 per carton.

Learn More

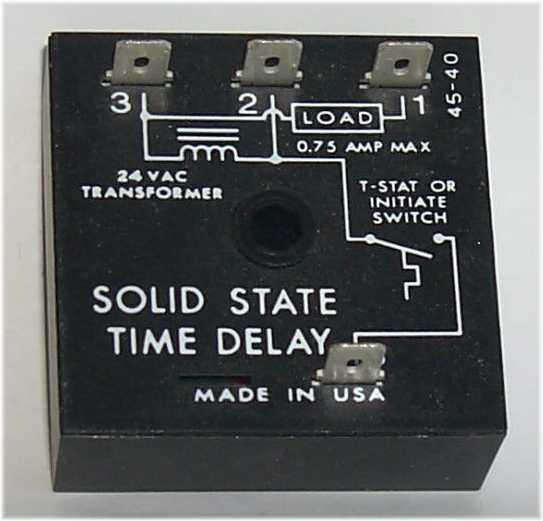

Control Timer SSAC

Parity Plus #1061-4545

Functionally Replaces: 90426200

Category: TDR Time Delay Relays

Description: Control Timer. Genuine SSAC. This is an exact replacement. Used in the latest "A" & "B" control panels. 24V input. Packed 1 to a carton.

Learn More

3/4 HP Bluffton (Franklin) Now WEG Vacuum Pump Motor

Parity Plus #1070-B075

Functionally Replaces: 90604500 or Franklin® # 1113821400 and 1113007432. Emerson CA63CXEKE-3557

Category: Vacuum Pump Motors

Description: 3/4 HP Bluffton Vacuum Pump Motor 56 frame, base mounted, 3450 rpm. Capacitor Start, internal safety end switch, 115/230V, FLA 10.0 / 5.0, reversible, TEFC 5/8" keyed shaft. For your convenience included is a mounted moisture-proof conduit box. High-temp grease and ball bearings front and rear. Shipping wt. 28 lb. Approx.

Learn More

1/2 HP Bluffton (Franklin) Vacuum Pump Motor Now WEG

Parity Plus #1070-A050

Functionally Replaces: RG®#'s 01311600 or 90600601 and GE® 5KC37LN44X or Westinghouse® 325P237, Franklin # 4113007400, Century 7-194032-01, Parity Plus # CRV-A-050F or CRVA050F

Category: Vacuum Pump Motors

Description: 1/2 HP Bluffton Vacuum Pump Motor 48 frame, base mounted, 3450 rpm. Capacitor Start, internal safety end switch, 115/230V, FLA 7 / 3.5, reversible, TEFC 1/2" x 2-1/4" shaft High-temp ball bearings front and rear. For convenience a mounted moisture-proof conduit box is included. This motor was designed with extra heavy start windings. Shipping wt. 19 lb. Approx.

Learn More

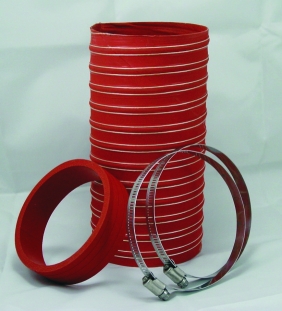

Vacuum Boot Kit

Parity Plus #1085-458K

Functionally Replaces: 02771000 or 91901300 & 91906900

Category: Vacuum Pump Accessories

Description: $59.67 Vacuum Pump Boot Kit. Includes 4.5" x 4.5" x 8" boot, Silicone bushing/spacer 4" id x 4-1/2" od and 2 SS hose clamps.

Learn More

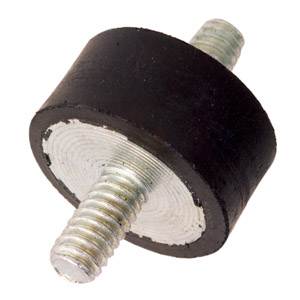

Rubber Vibration Mounts

Parity Plus #1071-6100

Functionally Replaces: 91906100, 907-076

Category: Vacuum Pump Accessories

Description: Vibration Mounts, Designed to absorb the transmission of vibration and noise between a Vacuum Pump and whatever it is mounted on.

Learn More

Vacuum Pump Boot ONLY 4.5" x 4.5" x 8"

Parity Plus #1085-4580

Functionally Replaces: 91411901, 91412801

Category: Vacuum Pump Accessories

Description: Vacuum Pump Boot manufactured with HI-TEMP Silicone rubber, wire reinforced on outer surface to extend reliability.

Learn More

Vacuum Pump Boot 4"

Parity Plus #1085-4080

Functionally Replaces: 91412800

Category: Vacuum Pump Accessories

Description: 4" x 4" x 8" Acoustic Pump Boot manufactured with HI-TEMP Silicone rubber, wire reinforced on outer surface to extend reliability.

Learn More

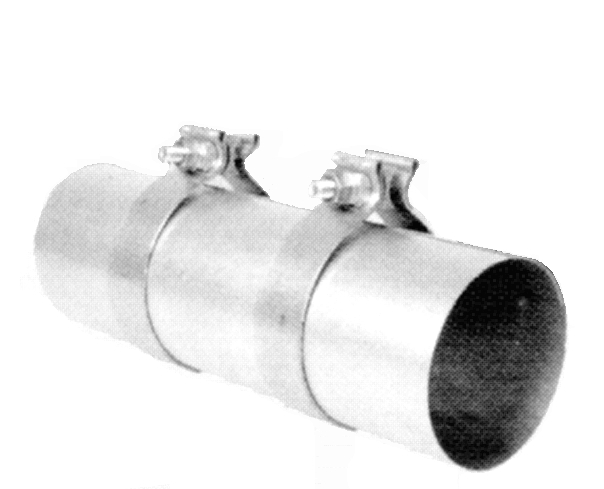

4" ID x 12" Heavy Duty Tubing Coupler

Parity Plus #1091-R010

Functionally Replaces:

Category: Tube Fittings

Description: 4" ID x 12" Heavy Duty Tubing Coupler 18 Ga. Aluminized steel with two (2) attached draw bands makes this the best radiant tubing connector available. Aligns tubes and keeps them straight. Self-centering stop. Shipping wt. 2.6 lb.

Learn More

Regulator, Zero Governor 1/2"x1/2" Maxitrol

Parity Plus #1042-500Z

Functionally Replaces: 90207000, 90207100, 02725300

Category: Regulators

Description: Maxitrol 500Z zero pressure governor. 1/2" x 1/2" #R500Z with 12A06 vent limiting orifice installed. 1 pound max inlet pressure.

Learn More

Regulator, Maxitrol

Parity Plus #1042-R400

Functionally Replaces: 90201400, RV35A 902-032

Category: Regulators

Description: Maxitrol R400 regulator w/ vent limiting oriface 3/8" x 3/8" N.P.T. Fits CRV A Series, CRV 5-40, CRV 4-40, CRV 3-40

Learn More

Motor Blower Assm.

Parity Plus #1072-M144

Functionally Replaces: 90708600P, 907086-00, Magnetek JB1M116NS, 90604800 McMillan Mod. 8211915058 906-038

Category: Motor & Blower Assemblies Parts

Description: Used on CTH2, DS, HE, TF-120, ER, ET3. 115v 60hz, 3000 RPM, Ball Bearings.

Learn More

Bird Screen, Galvanized 4" w/ SS clamp

Parity Plus #1074-4000

Functionally Replaces: 01312200

Category: Motor & Blower Assemblies Parts

Description: Galvanized bird screen fits 4" exhaust tubing. Includes Stainless Steel hose clamp.

Learn More

Motor Blower Assm w/flange.

Parity Plus #1072-9700

Functionally Replaces: 90709700-P, 8211915057, 8211915135, JB1M142NS

Category: Motor & Blower Assemblies Parts

Description: BH & DF all inputs. Includes plug. 0.02 HP 115 volt, 60 Hz, 0.9 amps, 1 phase 3,000 RPM CWLE Rotation, ball bearings includes fan wheel and 90709801 Blower Outlet Gasket.

Learn More

Motor Only for RTH-75 & RTH-75A

Parity Plus #1072-F454

Functionally Replaces: 90603800, JB1P018NV, F33HXHYY-3572, JB1P102, JB1P060NV Used on both RTH75 & RTH75A

Category: Motor & Blower Assemblies Parts

Description: 1/4" x 1-1/2" Shaft, 115 volt, 60 Hz, 2.3 amps, 1 phase 3,000 RPM, CWSE Rotation, sleeve bearings, Internal switch for main flame valve. Fan wheel available #1081-6133 Not exactly as pictured.

Learn More

Blower Wheel for RTH75 & RTH75A Airotor

Parity Plus #1081-6133

Functionally Replaces: 90707800, 907-078

Category: Motor & Blower Assemblies Parts

Description: .250 shaft, CCW, Hub Outside, Galv Steel, 4" dia. 2-1/2" wide

Learn More
